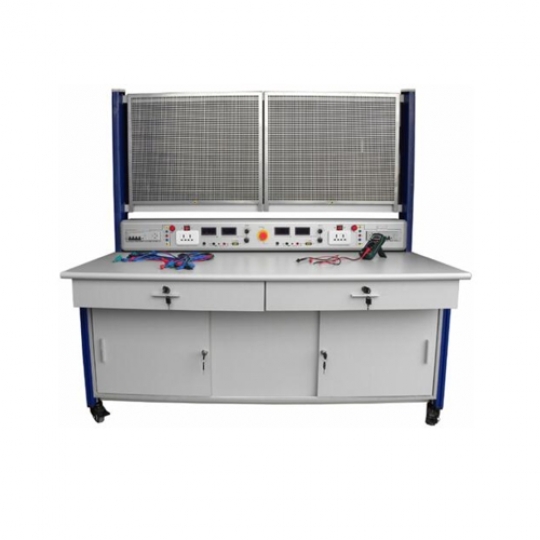

Electrical Installation Training Workbench

Electrical Installation Training Workbench

This trainer is one side, two work stations for two students, every work station has independent power, stainless patch board, it can meet the requirements for 2 students, to get electrical installation training. The equipment use aluminum structure, special industrial material, the structure is scientific, the outlook is beautiful, the surface use Dutch powder spray blue gems, stainless patch board use Stainless patch board, it was made by high precision CNC machines, it stand wear and tear, don't rust, don’t discoloration. Power box and meter box use industrial material, the surface use anodic oxidation treatment, it has good insulation, it is impact abrasion, beautiful appearance, easy to use.
Feature
It can be used in electrical major experimental workbench, to learn electric basic technical skills, major
technical skills, comprehensive technical skills and comprehensive training and projects. It can be also test electrician assessment, technical evaluations. It has low levels to high levels electrical automation circuit demonstrations, it has high flexibility.
Electric patch board use patch board form, the holes for installation is 5×10mm square holes, the in-between is 3mm, it is equipped with stable installation seats, it can be installed and disassembly flexibly, and can be used for many times. Regular components can  be installed in stainless patch board. It is easy to use.
Use electricity safety plug and sockets to connect output, use safety electrical cables to prevent electric shock, supply safety sockets, and supply safety protection for students and teachers.
III Technical parameter
Dimension: 1600×800×1800 mm(L×W×H)，use blue industrial column, the sectional dimension
123×34(L×W)，workbench thick is 25mm anti fire board, patch board dimension is 640×730MM，we
supply free installation seats and installation bolt.
Power input: three phases, five wires AC380±10ï¼…  50HZ±10ï¼…
Power control(per work station): leakage breaker to control the connect and disconnect for power,
with short circuit protection, leakage protection.
Output(per station):
Three phases AC 380V±10ï¼…  50HZ, single phase AC 220V±10ï¼…  50HZ
DC stabilized voltage:0～30V/3A, with coarse tuning, fine turning, adjust precision is 1‰, power
supply is 3A, 0～30V continuous adjustable, 3 bits and a half display digital display voltage, current, it
has current limit short circuit protection and self recovery functions. It also has sound and light alarm
function..
Meter box: it is equipped with point type voltage meter, current meter, frequency
meter, power meter, power factor meter, single phase kilowatt hour meter
