Electrical Machine Training Workbench

Electrical Machine Training Workbench

This trainer include various types of DC motors, DC generator, three phases AC synchronous motor, three phases AC induction motor, three phases transformer, single phase generator, power box, through experiments students can be familiar with DC motor features, master its control principles and control mode, it will cultivate students’ technical skills and knowledge.
Character

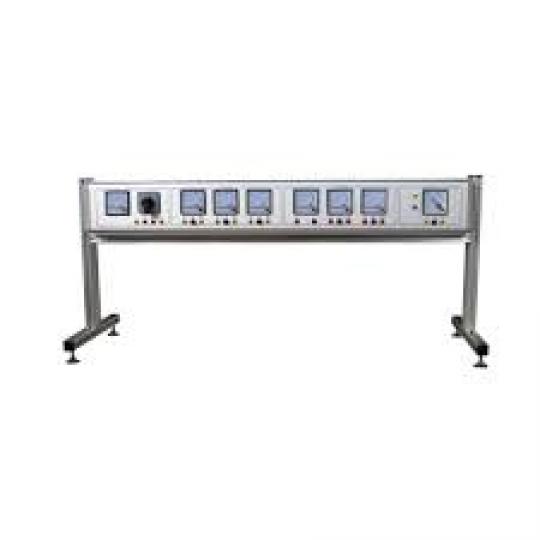

Training workbench use aluminum column structure frame, it include meter box and power box(with AC power, AC measurement meters, DC power, DC measurement meters) to test and measure technical parameter, it is easy to use and it is not easy to be broken.
Equipped with DC motors, DC generator, Three Phase Alternator (another name three phases AC asynchronous motor), three phases AC induction motor, power box, students can make combination, and finish many training contents.
Training workbench has high safety system.
Input power: single phase, three wires, 220V±10% 50Hz
Dimension: 1600mm×800mm×1300mm
Whole capacity:＜2.0KVA
Weight: ＜255kg
Work environment: Environment temperature: -10℃～+40℃
Relative humidity:  ＜85%(25℃)
Product consist of
Power control panel
Power control panel use aluminum structure metal panel, all close type boxes structure
Single phase, three wire power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.
Control panel has two point type voltage meter, one current meter, one power meter, one non power meter.
It equipped with indicator, Europe power plug output, safety output sockets.
Inner AC 220V current output, DC 220V wound power, DC 0-220V continuous adjustable DC armature power, with short circuit protection function.
AC power.
AC measurement meters.
