Benches For The Study Of Electrical Machines
Specification
This trainer contains various AC motor, by related experiments, you can get familiar with running characteristic of motor, master its control principle and control method, and students can get related knowledge and skill.
Input power supply: three-phase five-wire system 380V±10% 50Hz
Overall dimension: 1600mm×800mm×1300mm
Whole machine capacity: ï¼Å2.0KVA
Weight: ï¼Å100kg
Operating conditions: environment temperature -10ââÆ～+40ââÆ RH ï¼Å85%(25ââÆ)
The software can real time display motor electricity parameter, including voltage, current, frequency, work power, and can display rotary speed, torque etc. mechanical parameter, it can automatic storage data, and students can also print report. The software can be English.
Experiment of single-phase AC motor

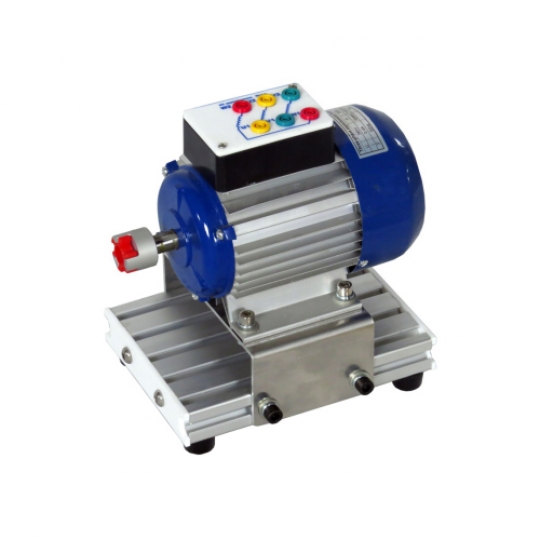

Experiment of three-phase AC asynchronous motor
Experiment of three-phase wound-rotor motor
Experiment of compound DC motor
Synthesize training for motor
